Product Details:
|
| Products Status: | Stock | Installation: | Wall Mount/Embedded |
|---|---|---|---|
| Size: | 10.1-65 Inch | Video Format: | MPG\AVI\WMV\RM\RMVB |
| Connector: | VGA/DVI/HD-MI | Warranty: | 1 Year |
| CPU: | RK3288/x86 I3/i5/i7 | OS: | Android/Linux/win7/win8/win10 |
| High Light: | Windows Industrial Panel PC,HDMI Industrial Panel PC,Embedded Industrial Computer Panel Pc |
||

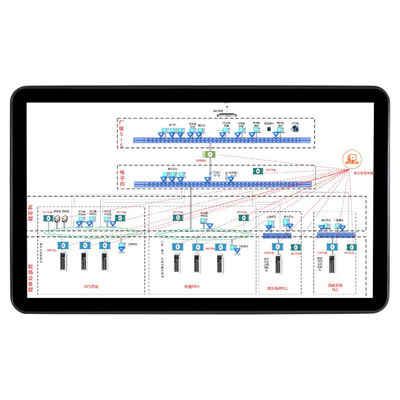

Touch Screen Windows Embedded All In One Industrial Computer Panel Pc
Product Quick Details:
HIGH AND LOW TEMPERATURE RESISTANCE FOR MORE ENVIRONMENT
Whole airframe adopt metal manufacture casting, cold rolled steel sheet back cover back type thermal
design, keepWorking temperature stability, the host long time running, to protect the life and stable
FEARL ESS COMPRESSIVE CAPACITY
In front of the screen surface through hardness reinforcement processing, aluminum alloy frame,
durable metal fuselageShell is firm, hardness and resistance to pressure can be stable operation in
harsh environment
RUN 24 HOURS
7 x24h jealous for a long time operation ability in platform, provide a stable working environment,
throughThe BIOS can be set up electricity boot function, can in unstable conditions remain stable operation
Product Features:
EFFICIENT COOLING SYSTEM
Military level cooling system, energy saving more than 5% than the general touch machine; Aluminum
bodyReasonable layout of heating components, to ensure the internal can effectively will hot tempera-
ture is derived
PREVENT INTERFERENCE AND STABLE OPERATION
Accord with standard of EMC, resistance to electromagnetic interference, adapt
to all kinds of industrial fieldOutdoor environment adapted to signal interference
Product Specification:
| Type | Open Frame Touch Monitor | ||
| LCD Type | 15 inch Active matrix TFT-LCD | ||
| Active Area | 245*184(mm) | ||
| Best Display Resolution | 1024*768 (4:3) | ||
| Supported Colors | 16.7M Colors | ||
| Brightness (typical) | 350cd/m² | ||
| Response Time (typical) | 16ms(TR+TF) | ||
|
Perspective (Typ.at CR>10)) |
Horizontal (Left / Right) | 80°/80° | |
| Vertical (Up / Down) | 80°/80° | ||
| Contrast Ratio (typical) | 800:1 | ||
| Video Import Format | VGA/DVI | ||
| Frequency (H/V) | 30~80KHz / 60Hz | ||
| Power Supply |
Type: external power adapter The output voltage: 12 volts at 1.5 amps max |
||
| Environmental | Operating temperature | -20~70°C | |
| Storage temperature | -30~80°C | ||
| Working humidity | 10%~85%RH | ||
| Storage humidity | 10%~95%RH | ||
| MTBF | 50,000 hours | ||
| LED Backlight Life (typical) | 50,000 hours | ||
| Power Consumption | 10W Max | ||
| OSD Control | Button | POWER,AUTO,+, -,MENU | |
| Functions | Brightness, contrast, auto-correction, phase, clock, horizontal and vertical position, language, function setting, reset | ||
| Touch Screen Type | 15inch 10 points capacitive screen | ||
| PC Motherboard Parameters | |
| IO Connector | USB: USB2.0*2, USB3.0*2 |
| Internet Port : RJ45*1 WIFI*1 | |
| RS232 Serial Port: COM*6 | |
| Touch Screen Type | capacitive touch screen (explosion proof) |
| Connection | USB |
| CPU | X86 J1900 (I3, I5,I7,optional) |
| Response Time (typical) | 8ms |
| ROM | 2G |
| Memory (Hard Disk) | 64G M-SATA |
| Certificate | CCC, CE, RoHs |
| Warranty | 1 year |
Application:
Widely used in different industries
The whole machine aluminum alloy efficient thermal processing designWith
anti-interference, anti- static, vibration, wide WenKuan pressure characteristics
Widely used in industrial automation, factory workshop, business intelligence and
wisdomHui city, medical, communications, automotive and other fields
