Place of Origin:
China
Brand Name:
Crtly
Certification:
CE,Rosh,HDMI

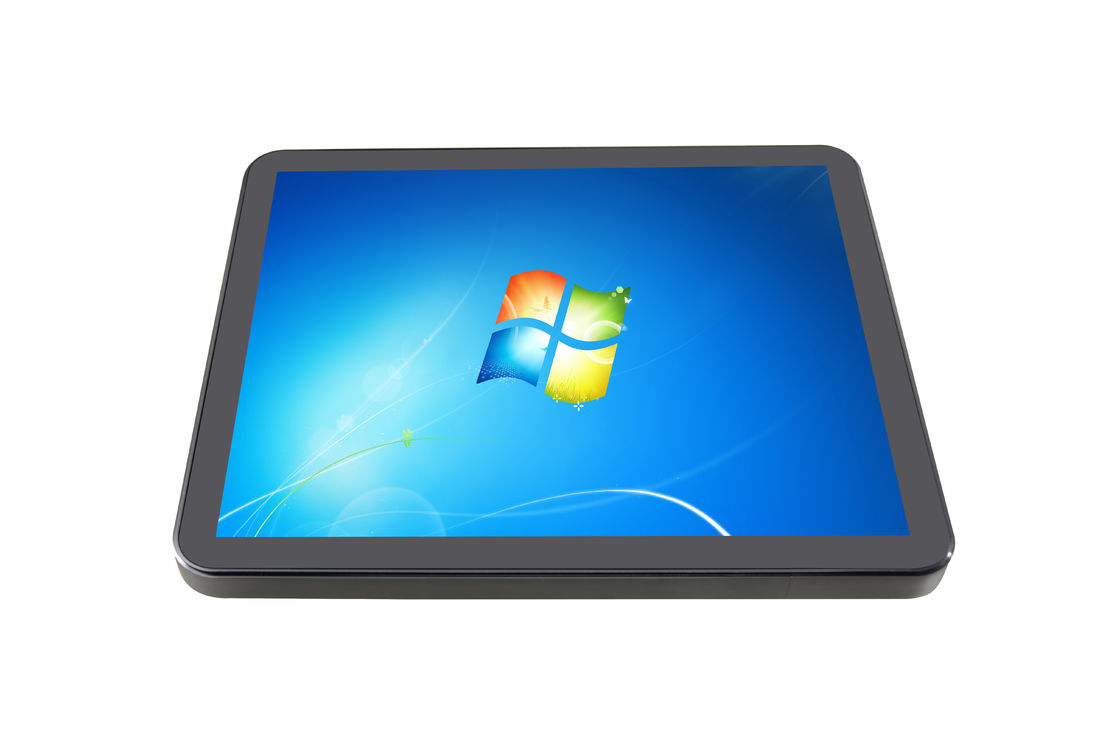

23 inch P-CAP Touch Screen ip65 Waterproof ipc Industrial Pc Embedded
PRODUCT DESCRIPTION
Aluminum Alloy enclosure,Seamless Front with IP65 standard
4G RAM+128G ROM
Support up to 4G RAM+ 128G ROM
Android 11 systemMake your tablet performant
SYSTEM AND MOTHERBOARD
Support Android ,L inux system
RK3128 quad-core 64-bit Cortex-A55 processor 1. 8GHz
10-FINGER-MULTI
The projected 10-point capacitive touch panel isaccurate and responsive
Widely Operating Temperature
Can work in the environment of-25° C to75° C degrees Celsius
Product Specifications
Model | AIO230W-01 | |
Type | All in one | |
LCD Type | TFT-LCD | |
Diagonal Dimension | 23"(diagonal) | |
Outer Frame color | Black | |
Active Area | 509.1mm*286.4mm | |
Display Resolution | 1920*1080 | |
Supported Colors | 16.7M | |
Brightness (typical) | 250cd/m2 | |
Response Time (typical) | 5ms | |
Perspective (Typ.at CR>10) |
Horizontal (Left / Right) | 89°/89° |
Vertical (Up / Down) | 89°/89° | |
Contrast Ratio (typical) | 1000:1 | |
Video input format | VGA&HDMI | |
Frequency(H/V) | 30~80KHz / 60~75Hz | |
Power Supply |
Input voltage: 100-240 V AC, 50-60 Hz |
|
Environmental | Operating temperature. | 0~50°C |
Storage temperature | -20~60°C | |
Working humidity | 10%~90% | |
Storage humidity | 10%~90% | |
MTBF | 50,000 hours | |
LED Backlight Life(Min) | 30,000 hours | |
CPU | RK3288/ 3399 optional | |
RAM | 2G | |
SSD | 8G | |
Interface | USB*4,RS232*2,RJ45*1 | |
Camera | No | |
Network | RJ45/Wifi/BT4.0/GPS/3G WCDMA/4G TD-LTE(optioal) | |
Video format | JPG/BMP/GIF/TIFF/PNG | |
support Video | RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS | |
Touch screen type | 23 ’’ capacitance touch screen (Riot) | |
Warranty | 1 Year |
Features
- 23" LCD screen with LED backlight, custom size available
- 4th generation Pentium 3558U/3556U DDR3-4G SSD-64G
- Resistive touch or 10-point projected capacitive touch
- Low power consumption fanless design
- Wide range DC support (9V- 36V)
- Provide 10cm VESA mount, embedded, desktop, wall-mounted installation methods
- Abundant I/O, including HDM1, RS232/RS485, USB, Gigabit Ethernet port, GPIO, etc.
- All aluminum die-casting housing material
superiority
Customized service
Cast aluminum fuselage
-20°C~55°C working environment
1080P 1 920 X1080 HD screen
10-point capacitive touch
24-hour uninterrupted work
Dust-ree workshop
Data collection
Industrial production
Automated production
Lathe processing
Human- computer interaction
Internet of Things
CNC operation
