Place of Origin:
China
Brand Name:
Crtly
Certification:
CE,Rosh,HDMI
Model Number:
crt-202

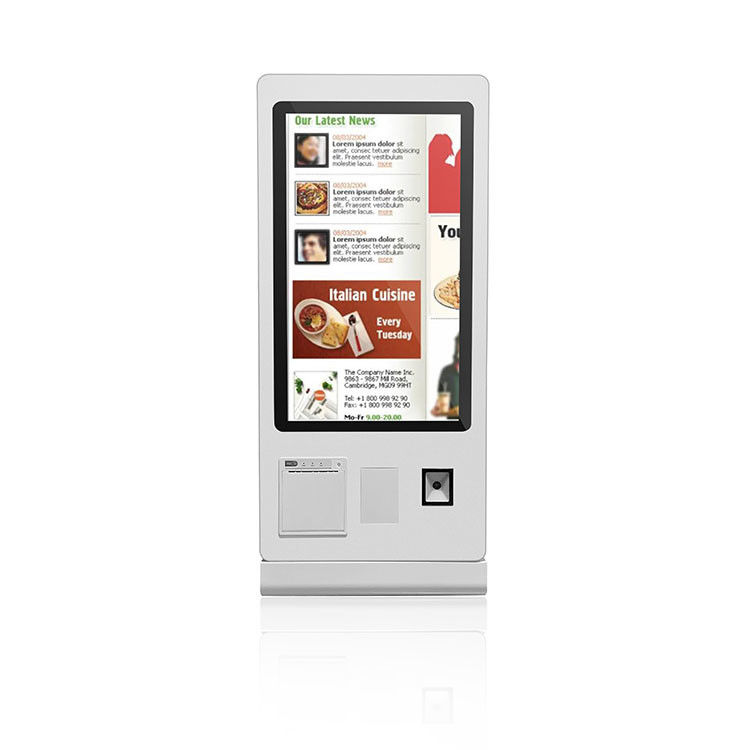

Kiosk Restaurant 27 Inch Touch Screen Self Ordering Payment Self Service Kiosk
Products Description
Screen with Capacitive Touch
Floor standing orwall mount installation
Receipt Printer
With switch lock ,easier
to change the paper
QR code scanner
The body of kiosk using mild steel
and baking process
NFC/POS is optional
Grade IPS Pan
High quality capacitive touch panel, with ultra-high light transmittance, strong anti riot ability, scratch resistance, abrasion resistance, dust-proof and waterproof;
♦ High touch sensitivity, fast speed, no drift
♦ Professional chip and processing technology to ensure high image quality;
♦ Industrial grade high-performance LCD screen, ensuring high definition, high brightness and stable use of images;
♦ The shell is designed with high-strength steel, which is ultra-thin, beautiful and solid in appearance, and has excellent protection grade and electromagnetic shielding performance;
♦ The surface is coated with fine grain paint, which is smooth, uniform, simple and generous. The color is integrated with the industrial host, and has good rust prevention and wear resistance functions;
♦ Multi signal interface, supporting multi signal input/output;
♦ High reliability and stability, applicable to education and training, exhibition, public media, video conference, military command and traffic management
Product Advantages
1. Fashionable appearance, aluminum alloy frame design, beautiful and elegant, high grade.
2. Imported brand LED high-definition LCD panel is adopted, with clearer picture quality and lower power consumption.
3. The surface frame is made of high-grade tempered glass, which is wear-resistant, scratch resistant and damage resistant.
4. The anti-theft lock is designed to make it safer to use in public places.
5. The horizontal and vertical screen design makes the suspension more free.
6. 24 * 7 continuous broadcast industrial power system.
7. The product has passed 3C/CE/FCC/RoHs certification and has software copyright certificate.
Product Specification:
| Item | self service ordering payment kiosk | |
| Size | 23.6'' 27'' 32'' | |
| Touch Type | Capacitive | |
| Touch life | Capacitive | |
| Touch screen | 10-point capacitive touch screen | |
| Screen resolution | 1920*1080 | |
| Android system | CPU: RockChip RK3288 CORTEX-A17 Eight-Core CPU 1.8GHz GPU: Mali-T764 O/S: Android 6.0 RAM: 2GB NAND FLASH: 8GB FLASH/EMMC Networking: RJ45/Built-in Wireless 802.11b/g/n,WAPI(Ralink 8188) /USB Wireless Dongle Interface:USB*4,SD*1,HDMI*1,RJ45*1,Audio out*1,SIM port*1 ,RS232*2 Bluetooth:2.402GHz to 2.480GHz |
|
| Panel | Brightness:350cd/m2 Maximum colors:16.7M Response time:5ms Backlight life:>50000 hrs TP Type:Capacitive 10 point |
|
| external device | Printer:58mm QR code:Support(optional) RFID:Support(optional) camera:Support(optional) |
|
| Other | Power Supply:Ac 110~240V 4A 50/60HZ Power:45w MAX Speaker:Built-in 2*8W high quality stereo loudspeakers Sound Effects:yes Work Temperature:-10°C-60°C Storage Temperature: -20°C-70°C Working Humidity:20%-80% Storage Humidity:10%-95% |
Application:
Stations, cinemas, hospitals, banks, schools, government halls and other places where self-service terminals are relatively mature have all kinds of self-service machines for everyone's convenience. With the development of technology and people's understanding of self-service terminals, there will be more and more occasions to use self-service.
