Product Details:
|
| Touch Screen Type:: | Capacitive Touch | Application: | Indoor |
|---|---|---|---|
| Power Supply: | 110V/220V | Resolution: | 1920*1080 |
| Function: | Self-service Ordering | Touch Screen: | 10-Point Capacitive Touch |
| Operating System: | Linux/Android/Wind 7/ 8/10 | ||
| High Light: | 18.5 Inch Self Checkout Machine,220V Self Checkout Machine,Indoor terminal self checkout |
||
|

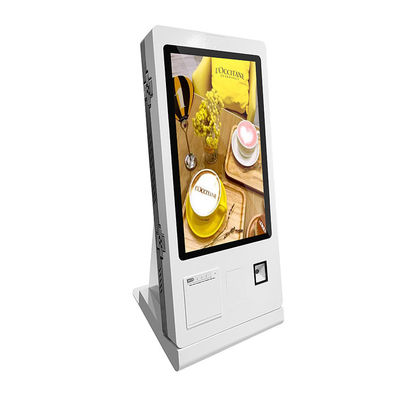

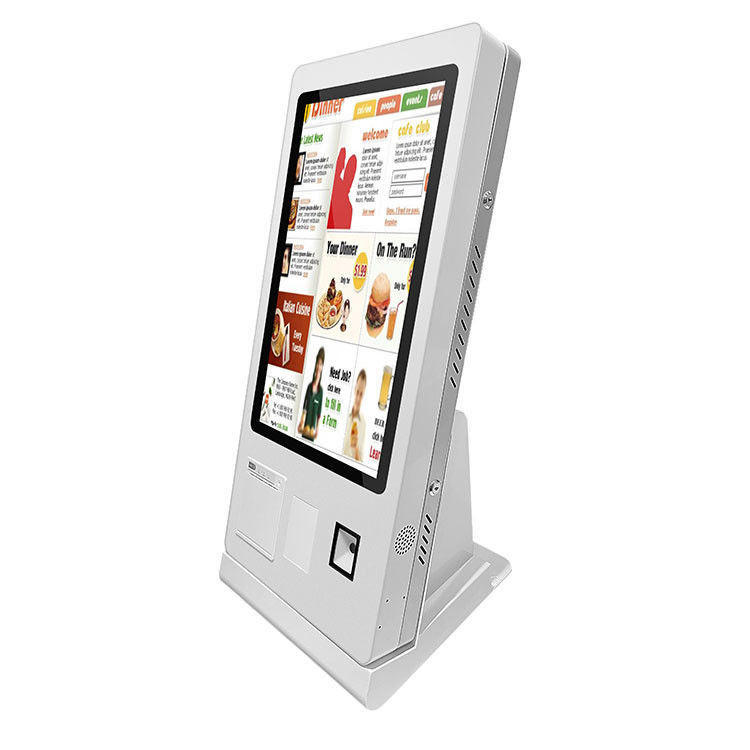

18.5 Inch Self Checkout Machine Payment Terminal |
Products Description
Main components and basic functions of standard self-service kiosk
*PCAP touch display
*QR code scanner
*80mm thermal printer
*External USB port for your own POS
*Including WIFI and Bluetooth
*Free standing support and wall hanging support
Optional parts
*3G/4G module optional
*RFID/NFC module integration optional
*Optional camera
Physical specifications:
Can intergrate with any pos system
Collect powerful customer data
Built on powerful,secure cloud
Add a competitive edge to your business
technology
Build customer loyalty with easy
Paypal supporting any local cashless
self-service experience
payment method Paypal
Product Advantages
High quality capacitive touch panel, with ultra-high light transmittance, strong anti riot ability, scratch resistance,
abrasion resistance, dust-proof and waterproof;
♦ High touch sensitivity, fast speed, no drift
♦ Professional chip and processing technology to ensure high image quality;
♦ Industrial grade high-performance LCD screen, ensuring high definition, high brightness and stable use of images;
♦ The shell is designed with high-strength steel, which is ultra-thin, beautiful and solid in appearance,
and has excellent protection grade and electromagnetic shielding performance;
♦ The surface is coated with fine grain paint, which is smooth, uniform, simple and generous.
The color is integrated with the industrial host, and has good rust prevention and wear resistance functions;
♦ Multi signal interface, supporting multi signal input/output;
Product Specification:
| Android system | CPU: RockChip RK3288 CORTEX-A17 Eight-Core CPU 1.8GHz GPU: Mali-T764 O/S: Android 6.0 RAM: 2GB NAND FLASH: 8GB FLASH/EMMC Networking: RJ45/Built-in Wireless 802.11b/g/n,WAPI(Ralink 8188) /USB Wireless Dongle Interface:USB*4,SD*1,HDMI*1,RJ45*1,Audio out*1,SIM port*1 ,RS232*2 Bluetooth:2.402GHz to 2.480GHz |
|
| Panel | Brightness:350cd/m2 Maximum colors:16.7M Response time:5ms Backlight life:>50000 hrs TP Type:Capacitive 10 point |
|
| external device | Printer:58mm QR code:Support(optional) RFID:Support(optional) camera:Support(optional) |
|
| Other | Power Supply:Ac 110~240V 4A 50/60HZ Power:45w MAX Speaker:Built-in 2*8W high quality stereo loudspeakers Sound Effects:yes Work Temperature:-10°C-60°C Storage Temperature: -20°C-70°C Working Humidity:20%-80% Storage Humidity:10%-95% |
Application:
♦ High reliability and stability, applicable to education and training, exhibition, public media, video conference, military command and traffic management
