Place of Origin:
China
Brand Name:
Crtly
Certification:
CE,Rosh,HDMI

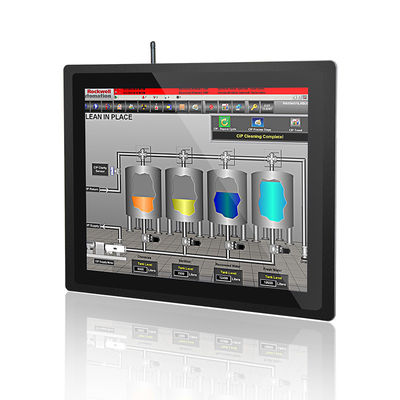

21.5 inch i3 i5 i7 Pc Industrial All in One Capacitive Touch Screen Panel PcProduct size
Supports customization of various screen sizes, such as 10.4 inch/
12.1 inch/15 inch/17 inch/19 inch and other sizes,
ifyou need other size,Please contact us
Product Quick Details:
10-point capacitive touch
alluminum alloy design
good mute effect
Heat dissipation
Waterproof front shell
Dustproof design
Product Features:
Capacitive Touch
With HD LCD screen, the picture clear, broad vision, full of rich colors
10point
5seconds Capacitive Touch Reaction time
Efficient heat
dissipation back cover
Fully enclosed aluminum alloy back cover,fficient heat dissipation
Waterproof Front Shell
The pure flat panel IP65 protection grade design effectively
preventsdust, water droplets, etc.
Industrial PC
Different configuration windows: J1900 i3 i5 i7
Android: RK3288 RK3399
Product Advantages:
Windows 7 Windows 10
Android
Capacitive
All in one
touch screen
industrial pc
Alluminum alloy design
Air circulation designi
Dustproof design
Interface display
Product Interface Diagram
Multiple interfaces to meet your various needs
Product Specification:
| Type | All in one | |
| LCD Type | TFT-LCD | |
| Diagonal Dimension | 19＂(diagonal) | |
| Outer Frame color | Black | |
| Active Area | 376.3mm*301.1mm | |
| Display Resolution | 1280*1024 | |
| Supported Colors | 16.7M | |
| Brightness (typical) | 250cd/m2 | |
| Response Time (typical) | 5ms | |
|
Perspective (Typ.at CR＞10) |
Horizontal (Left / Right) | 89°/89° |
| Vertical (Up / Down) | 89°/89° | |
| Contrast Ratio (typical) | 1000:1 | |
| Video input format | VGA&HDMI | |
| Frequency(H/V) | 30～80KHz / 60～75Hz | |
| Power Supply |
Input voltage: 100-240 V AC, 50-60 Hz |
|
| Environmental | Operating temperature. | 0～50°C |
| Storage temperature | -20～60°C | |
| Working humidity | 10%～90% | |
| Storage humidity | 10%～90% | |
| MTBF | 50,000 hours | |
| LED Backlight Life(Min) | 30,000 hours | |
| CPU | RK3288/ J1900 optional | |
| RAM | 2G | |
| SSD | 8G | |
| Interface | USB*4,RS232*2,RJ45*1 | |
| Camera | No | |
| Network | RJ45/Wifi/BT4.0/GPS/3G WCDMA/4G TD-LTE(optioal) | |
| Video format | JPG/BMP/GIF/TIFF/PNG | |
| support Video | RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS | |
| Touch screen type | 19’’ capacitance touch screen (Riot) | |
| Warranty | 1 Year | |
Application:
Game and gambling industry
♦ Indoor and outdoor interactive all-in-one machine
♦ entertainment
♦ Transportation ticketing system
♦ hospital
♦ bank
♦ Personalized solutions
