Parking Kiosk
Created with Pixso. Outdoor Smart Parking Lot Payment Machine Kiosk With Barcode Scanner And Camera

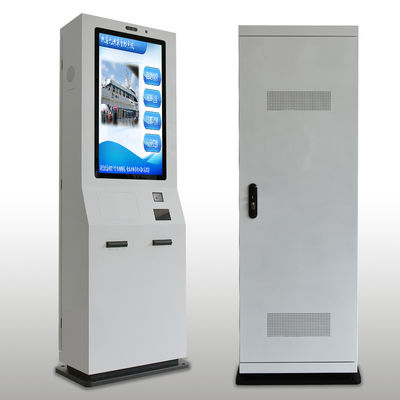

Outdoor Smart Parking Lot Payment Machine Kiosk With Barcode Scanner And Camera

Brand Name: Crtly
Model Number: crt-202
MOQ: 1pcs
Price: Negotiable
Delivery Time: 3-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE,Rosh,HDMI
Function:
SDK
Installation:
Floorstanding Stand
Type:
LCD Touch Screen
Warranty:
12 Months
Customized Service:
Function, Size, Logo Full Customized
Name:
Floor Standing Parking Kisok
Packaging Details:
Packaging: Packed with strong EPE,carton box and wooden box (Each two sets packed into one carton) Various shipping method optional such as DHL, UPS, FEDEX, TNT, by air or by ship
Supply Ability:
500pcs/Month
Highlight:

Floorstanding Payment Machine Kiosk

,

SDK Payment Machine Kiosk

,

Barcode Scanner Parking Kiosk

Product Description

Outdoor Smart Parking Lot Payment Machine Kiosk With Barcode Scanner And Camera

Other optional components:
Bill acceptor,
Bill Dispenser,
Coin Dispenser,
Coin acceptor,
RFID card reader,
POS terminal,
Barcode/2D scanner,
Fingerprint Scanner,
Metal Keyboard,
Speaker,
UPS



SPECIFICATIONS

Monitor Size: 32’’
Display scale: 16:9
Type: Capacitive touch LED
Touch response time: 5ms
Touch Object:Finger, Pen,
any conductive object
LED Backlight Life(Min): 30,000 hours
Display Resolution: 1920 x 1080
Brightness: 1500 cd/m2
Contrast ratio: 1200:1
Display area: 765mm*459mm
View angle: 178°/ 178°
Computer CPU: Intel Corei3 i5 i7/ RockChip RK3288
System: Windows/Android
RAM: 2G/4G/8G
ROM: 32G/64G/128GB SSD
Interface: USB*4,RS232*2,RJ45*1
Frequency(H/V): 30~80KHz / 60~75Hz
More Info Overall dimension:
640mm(L)*340mm(W)*1895mm(H)
Net weight: 75KG
Power Type: external power adapter
Input voltage: 100-240 V AC, 50-60 Hz
Working environment:
Operating temperature: -10~50°C
Storage temperature: -20~60°C
Working humidity: 10%~90%
Storage humidity: 10%~90%
Protection level: IP65

Features:
 Can be used in conjunction with license plate recognition and UHF, Support voice broadcast.
 23 inch LCD screen: High-definition bright light perception outdoor screen, Support minor language display
 Built-in radar, do not need coil loop
 Enter to print the QR code, Exit to scan the QR code



Description of product use effect,
1. Use self-service payment machine, reduce a lot of labor costs
2. Less errors in change
3.24 hours unattended
4. Quick and convenient to help customers complete the car wash process



automatic payment machine
is an optional automatic payment terminal that is part of the car park management system.

It supports multiple payment methods, such as bills, coins, bank cards (optional),

T&G card readers (optional), and local traffic cards (optional), read parking barcode

tickets or proximity cards, and even parkers can Enter the license plate on the touch screen.

Parkers can obtain a receipt from this APS. For parking people, APS has a friendly

interface and is easy to use. It can effectively promote vehicle circulation, realize

unmanned intelligent charging, reduce labor costs, and improve the level of property

management. Especially suitable for large parking lots.


feature:
Unattended parking lot: Parkers can pay by themselves and print receipts.
Multiple payment methods: support bill&coin, bank card reader (optional), T&G card

reader (optional) and local traffic card (optional)Various currencies: accept banknotes

and coins from more than 120 countries and regions.Multiple charging methods:

support for reading parking cards, scanning barcode tickets, and inputting license

plate numbers Modular design: simple and elegant internal structure, built-in walkie-talkie and

UPS power supply are more friendly.Humanized design: When the banknotes or change

are used up and the cash box is almost full, the management software will receive a notification.
