touch industrial pc inch industrial touch screen android panel pc
Product Description:

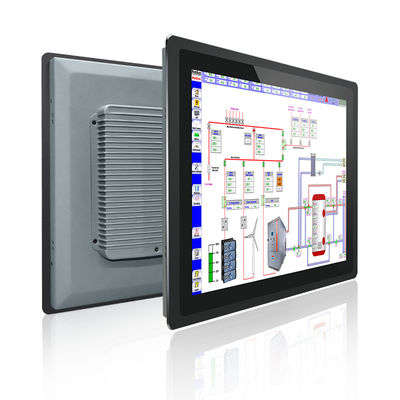

Touch Panel PC is a type of industrial PC designed for commercial and industrial applications. It features an IP65 waterproof industrial panel PC and is a perfect solution for any environment requiring a rugged, reliable and long-lasting industrial all-in-one panel PC kiosk. This all-in-one computer touch panel PC industrial has a wide range of resolution options, including 1920*1080, and is available with different operating systems such as Windows, Android and Linux. It also offers different display technologies, like LED, IPS and OLED, and comes in a variety of colors that can be customized. This touch panel PC comes with different RAM options, such as 4GB, 8GB and 16GB, so you can choose the one that best suits your needs.
Features:
- Product Name: Touch Panel PC
- CPU: Intel Core I3/i5/i7
- Connectivity: Wi-Fi/Bluetooth/USB
- Display: LED/IPS/OLED
- OS: Windows/Android/Linux
- Size: Customize
- Industrial PC IP65 Waterproof Industrial Panel PC
- Touch Industrial All in One Panel PC Kiosk
- All in One Computer Touch Panel PC Industrial
Product parameters:
Size
|
10.1"(diagonal)
|
15"(diagonal)
|
19"(diagonal)
|
21.5"(diagonal)
|
Display Area
|
305mm*229mm
|
305mm*229mm
|
376.3mm*301.1mm
|
476.1mm*267.8mm
|
Display Resolution
|
1024*768
|
1024*768
|
1280*1024
|
1920*1080
|
Supported Colors
|
16.7M
|
16.7M
|
16.7M
|
16.7M
|
Brightness (Typical)
|
300cd/m2
|
300cd/m2
|
250cd/m2
|
250cd/m2
|
Response Time (Typical)
|
8ms
|
8ms
|
5ms
|
20ms
|
Viewing Angle
|
Horizontal:89°(L)/89° (R)
|
Horizontal:89°(L)/89° (R)
|
Horizontal:89°(L)/89° (R)
|
Horizontal:89°(L)/89° (R)
|
|
Vertical:89°(U)/89° (D)
|
Vertical:89°(U)/89° (D)
|
Vertical:89°(U)/89° (D)
|
Vertical:89°(U)/89° (D)
|
Contrast Ratio(Typical)
|
2000:1
|
2000:1
|
1000:1
|
3000:1
|
Video Output Format
|
VGA/HD-MI-compatible
|
VGA&HD-MI-compatible
|
VGA&HD-MI-compatible
|
VGA&HD-MI-compatible
|
Display Frame Frequency
|
30~80KHz / 60~75Hz
|
30~80KHz / 60~75Hz
|
30~80KHz / 60~75Hz
|
30~80KHz / 60~75Hz
|
Power Supply
|
Type: External power adapter
|
Type: external power adapter
|
Type: external power adapter
|
Type: external power adapter
|
Input Voltage: 100-240 V AC, 50-60 Hz
|
Input voltage: 100-240 V AC, 50-60 Hz
|
Input voltage: 100-240 V AC, 50-60 Hz
|
Input voltage: 100-240 V AC, 50-60 Hz
|
Output Voltage/Current: 12 volts at 3amps max
|
The output voltage: 12 volts at 1 amps Max
|
|
|
Environment
|
Operating Temperature:-20~70°C
|
Operating Temperature:-20~70°C
|
Operating Temperature:0-50°C
|
Operating Temperature:0-50°C
|
Storage Temperature:-30~70°C
|
Storage Temperature:-30~70°C
|
Storage Temperature:-20~60°C
|
Storage Temperature:-20~60°C
|
Operating Humidity:10%~90%
|
Operating Humidity:10%~90%
|
Operating Humidity:10%~90%
|
Operating Humidity:10%~90%
|
Storage Humidity:10%~90%
|
Storage Humidity:10%~90%
|
Storage Humidity:10%~90%
|
Storage Humidity:10%~90%
|
MTBF
|
50,000 h
|
50,000 hours
|
50,000 hours
|
50,000 hours
|
LED Backlight Life (Typical)
|
70,000 h
|
70,000 hours
|
30,000 hours
|
30,000 hours
|
CPU
|
J1900/I3/I5/RK3288(Optional)
|
J1900/RK3288(Optional)
|
RK3288/ J1900 optional
|
J1900/1037/I3/I5 RK3288 optional
|
RAM
|
2G/4G/8G
|
4G
|
2G
|
DDR3 2G/4G optional
|
SSD
|
64GB/128G
|
128G
|
8G
|
SSD 64G/128G/256G optional
|
Network Support
|
RJ45/Wifi/BT4.0/GPS/3G WCDMA/4G TD-LTE (optional)
|
RJ45/Wifi/BT4.0/GPS/3G WCDMA/4G TD-LTE(optioal)
|
RJ45/Wifi/BT4.0/GPS/3G WCDMA/4G TD-LTE(optioal)
|
RJ45/Wifi/BT4.0/GPS/3G WCDMA/4G TD-LTE(optioal)
|
Image Format Support
|
JPG/BMP/GIF/TIFF/PNG
|
JPG/BMP/GIF/TIFF/PNG
|
JPG/BMP/GIF/TIFF/PNG
|
JPG/BMP/GIF/TIFF/PNG
|
Support Video
|
RMVB, FLV, MPEG1/2/4, AVI,WMV,MOV,MP4,TS
|
RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS
|
RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS
|
RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS
|
Interface
|
USB
|
USB
|
USB*4,RS232*2,RJ45*1
|
USB*4,RS232*2,RJ45*1
|
Technical Parameters:
Product advantages:
Using cutting-edge technology, our products have great advantages that make them stand out in the market.
To start, our products are built with quality materials. This ensures that you enjoy not only a superior product experience but also a lasting one. The parts last for a long time, so you don't have to worry about replacing them often.
The focus on quality is taken a step further with the inclusion of advanced features. Our products have a wide range of functions and settings, making them a great choice for a wide variety of users and needs. It's no wonder they win awards and recognition for their stellar performance.
Finally, our products are backed with excellent customer service. From installation to after-sales support, our friendly and knowledgeable staff are available to ensure that you get the best possible experience.
Support and Services:
Touch Panel PC Technical Support and Services
At ABC Technologies, we provide world-class support and services for our Touch Panel PC products. We offer 24/7 technical support to ensure that our customers get the help they need when they need it.
We also offer a range of services, such as installation, maintenance, and repairs, to ensure that your Touch Panel PC is up and running at all times. Our team of certified technicians is available to answer any questions you may have and provide you with the technical support you need.
At ABC Technologies, we strive to provide the best customer service and technical support possible. If you have any questions or need assistance with your Touch Panel PC, please contact us and we will be happy to help.
